Spun-bonded-Polyester Filter Cartridges
Our cylindrical filter cartridge uses high‑quality spunbonded polyester non‑woven media. Suited for general dry‑dust conditions. Drop‑in replacement for various industrial dust collectors. Custom sizes are available.
Spunbonded Polyester Filter Cartridge：high tensile strength, chemical resistance, dust-proof, easy cleaning, long service life, ideal for industrial air intake filtration.
‑ Cylindrical round pleated filter cartridge
‑ Spunbonded polyester non‑woven filter media
‑ Suitable for normal dry dust applications
‑ Drop‑in replacement for dust collectors
‑ Custom dimensions available

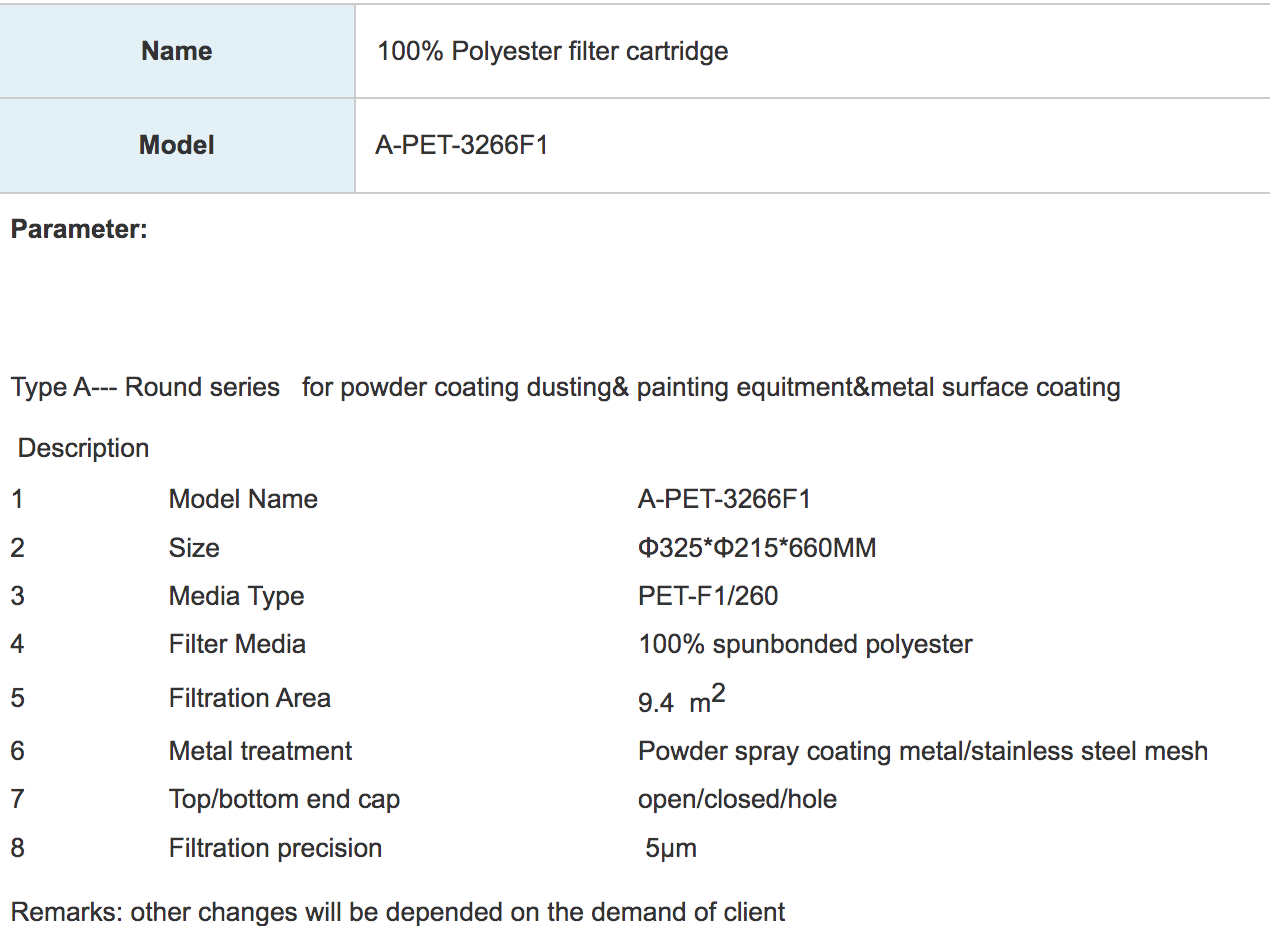

Cylindrical Filter Cartridge - A TYPE | |||
A | B | C | L=1000MM Filtration Area (M2) Spunbonded Polyester |
Φ180 | Φ98 | 17 | 3.5-5.8 |
Φ213 | Φ122 | 23 | 4.6-7.8 |
Φ245 | Φ144 | 36 | 6.4-10.6 |
Φ260 | Φ160 | 16 | 7.0-12.5 |
Φ280 | Φ170 | 35 | 8.0-13.0 |
Φ300 | Φ190 | 24 | 9.0-15.0 |
Φ325 | Φ215 | 30 | 10.0-18.0 |
Φ350 | Φ240 | 32 | 11.0-19.0 |
Φ420 | Φ310 | ||
Φ470 | Φ370 | ||
Φ490 | Φ330 | ||
Φ580 | Φ470 | ||
When L=1000mm, the filtration area is shown above. Other filtration areas can be calculated in proportion to the length. The higher the dust concentration, the smaller the filtration area.
